Brand Name : REXROTH
Model Number : A4VG90
Certification : CE ISO 9001
Place of Origin : China
MOQ : 1
Price : NIGOTIATION
Payment Terms : T/T, T/T
Supply Ability : 1000/month
Delivery Time : 5 work days
Packaging Details : standard
Warranty : 1 Year
Appliion : Crawler Excavator,Bulldozer,Crawler Undercarriage,For excavator,Excavator Undercarriage Parts
Color : Black,customized color
Part name : track roller
After-sales service provided : Online support,Video technical support
Usage : Oil
Application : Excavator
Fuel : hydraulic oil
Power : Hydraulic
Pressure : High Pressure
Structure : Hydraulic piston pump
Standard or nonstandard : Standard
Theory : Rotary Pump,plunger pump
Product name : Hydraulic Pump,A10V Series Hydraulic Piston Pump
Material : Cast Iron
Size | 28 | 40 | 56 | 71 | 90 | 125 | |||
Displacement geometric, per revolution | | Vg max | cm³ | 28 | 40 | 56 | 71 | 90 | 125 |
Nominal pressure | | pnom | bar | 400 | 400 | 400 | 400 | 400 | 400 |
Maximum pressure | | pmax | bar | 450 | 450 | 450 | 450 | 450 | 450 |
Maximum speed | at Vg max | nnom | rpm | 4250 | 4000 | 3600 | 3300 | 3050 | 2850 |
Intermittent1) | nmax | rpm | 5000 | 5000 | 4500 | 4100 | 3800 | 3450 | |
Flow | at Vg max and nnom | qV nom | l/min | 119 | 160 | 202 | 234 | 275 | 356 |
Power | at qV nom and Δpnom2) | P | kW | 79 | 107 | 134 | 156 | 183 | 238 |
Torque | at Vg max and Δpnom | M | Nm | 178 | 255 | 357 | 452 | 573 | 796 |
Weight (approx.) | | m | kg | 29 | 31 | 38 | 50 | 60 | 80 |
![]() |

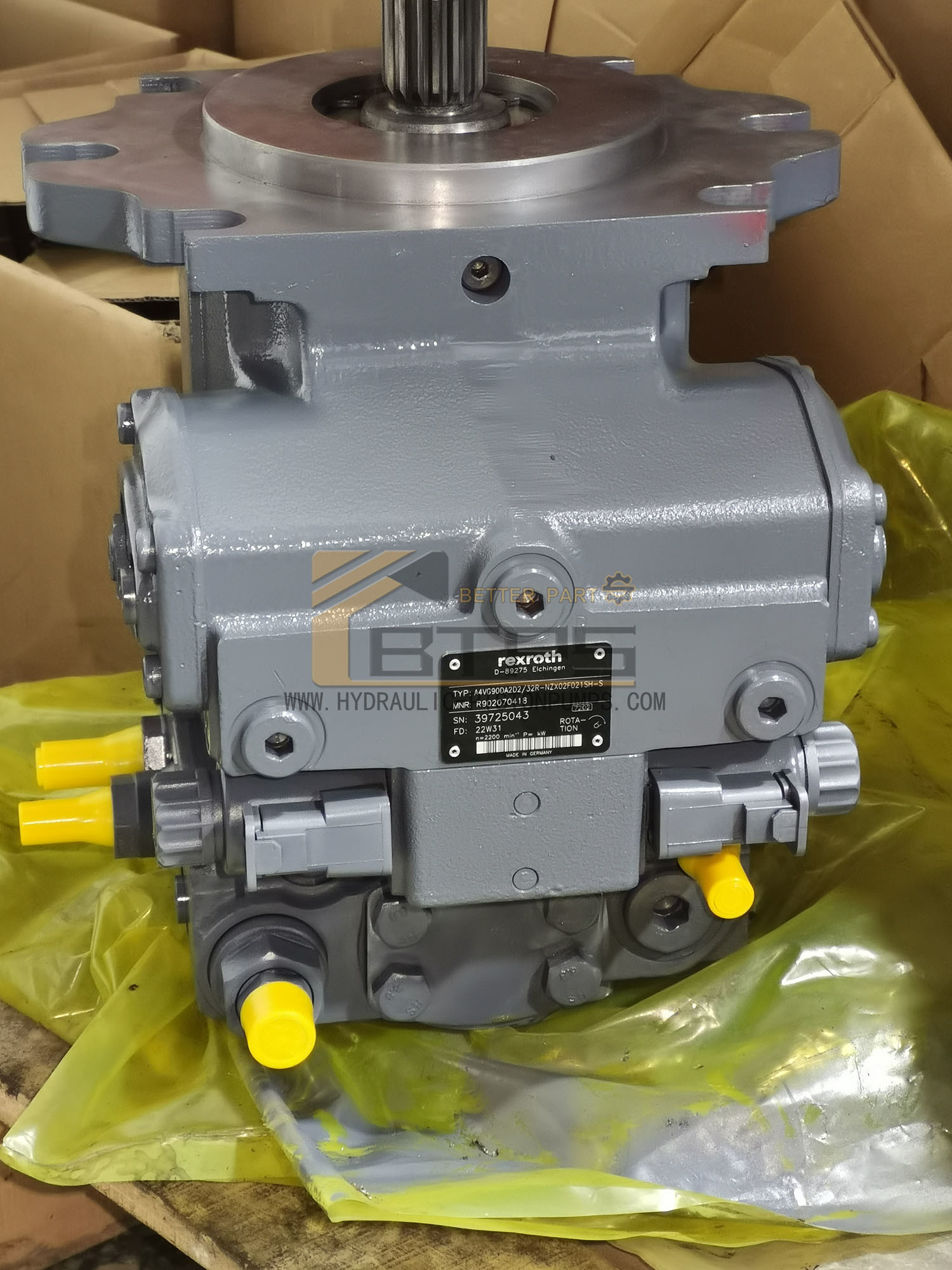

A4VG90DA2D2/32R-NZX02F021SH-S Series Rexroth Hydraulic Pump A4VG125 A4VG180 Images |
